S500H KEL-BERG 3-AXLE STEPFRAME EXTENDER TRAILER 13,450 MM

10 Ton SAF Axles

The trailer is equipped with SAF drum brake axles with a capacity of 10 tonnes. Kingpin pressure 18 tonnes, which allows you to load a total weight of 48,000 kg.

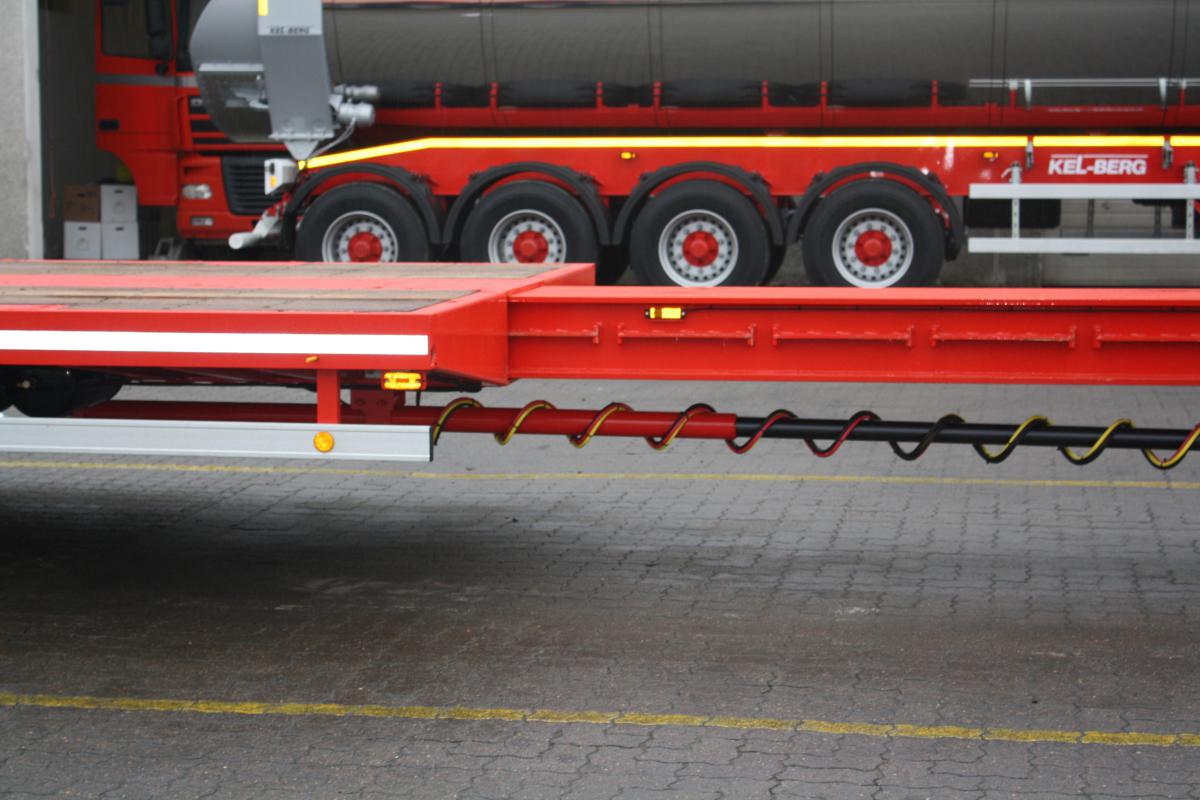

Extension

The trailer is equipped with a 6,000 mm trombone that allows you to load more varied goods where length plays a major role.

Lashing points

The trailer is equipped with various load securing options so you can securely attach chains and straps, regardless of the shape or size of your load.

• 5 pairs of anchor points (10t) edge line (gooseneck)
• 2 pairs of Laxo sleeves in edge line (gooseneck)
• 9 pairs of anchoring points (10t) edge line
• 8 pairs of Laxo sleeves in the edge line
• Brackets for container lock 1x40" + 2x20"

Removable Anodised Boards

The removable aluminium boards allow you to create an enclosed space to store equipment. You can remove these to give you even more space to load larger equipment. These are anodised which means they will not rust.

The trailer is equipped with 2 high table drawbars.

Service weight

The trailer weighs 10,000kg, giving you a significant payload to work with. The use of high strength steel ensures a strong yet lightweight construction, perfect for the heavy forces exerted on these trailers.

Storage

The trailer is equipped with 1 ST combi box for bedding and ramps.

LED Lighting

The trailer has full LED lighting, ensuring your trailer is always visible on the road at night. LEDs are also incredibly long-lasting.

JOST Support Legs

The trailer is equipped with JOST outriggers. These are incredibly reliable outriggers and that's why we fit them on all our trailers. These outriggers have two gears that make it possible to raise and lower them even when the trailer is loaded.
